 SAR, MIL AND R&D - KRAKA COMES TO THE RESCUE

This is the first inflatable, light-weight electric board on the market, filling the gap where other small floating devices fail due to shape, loading capacity, draft, or noise. Thanks to her unique features, Kraka is useful in most challenging real life situations, from rescue operations to river crossings, boarding and other stealth mode missions. She is quickly inflated and easily assembled, and she can be smoothly launched from land, helicopters, submarines and other vessels.


Materials

The board is made of lightweight composite and inflatable materials, essential for achieving usability and speed. The construction is built to last.

Premium composites like carbon fiber with kevlar reinforcement, and heavy duty hypalon drop stitch fabrics, allow the board to withstand hard impacts while protecting the vital components inside, so that the users to push the limits. The board can be delivered in different colors (Black, Military Grey, Light Grey, Army Green).

MOTOR

Kraka was essentially developed with one key factor in mind: engine reliability. The 11kW brushless electric motor amply delivers the torque needed to carry four (4) people at speeds of up to 15 knots. A precision-machined impeller and housing parts ensure maximized efficiency. Watertight seals, together with the water the board rides on, eliminates the need for any internal coolants, minimizing maintenance.


BATTERY PACK

The exchangeable battery pack, consisting of high quality lithium ion cell battery, is designed to meet the demanding requirements in critical situations. It delivers 30–60 minutes of riding, depending on speed, load etcetera.

USABILITY

Based on user feedback, Kraka is designed to facilitate maximum ease-of-use, both in and out of the water. The battery pack is easily swapped by a single movement, enabling hours of riding. The throttle is ergonomically designed.

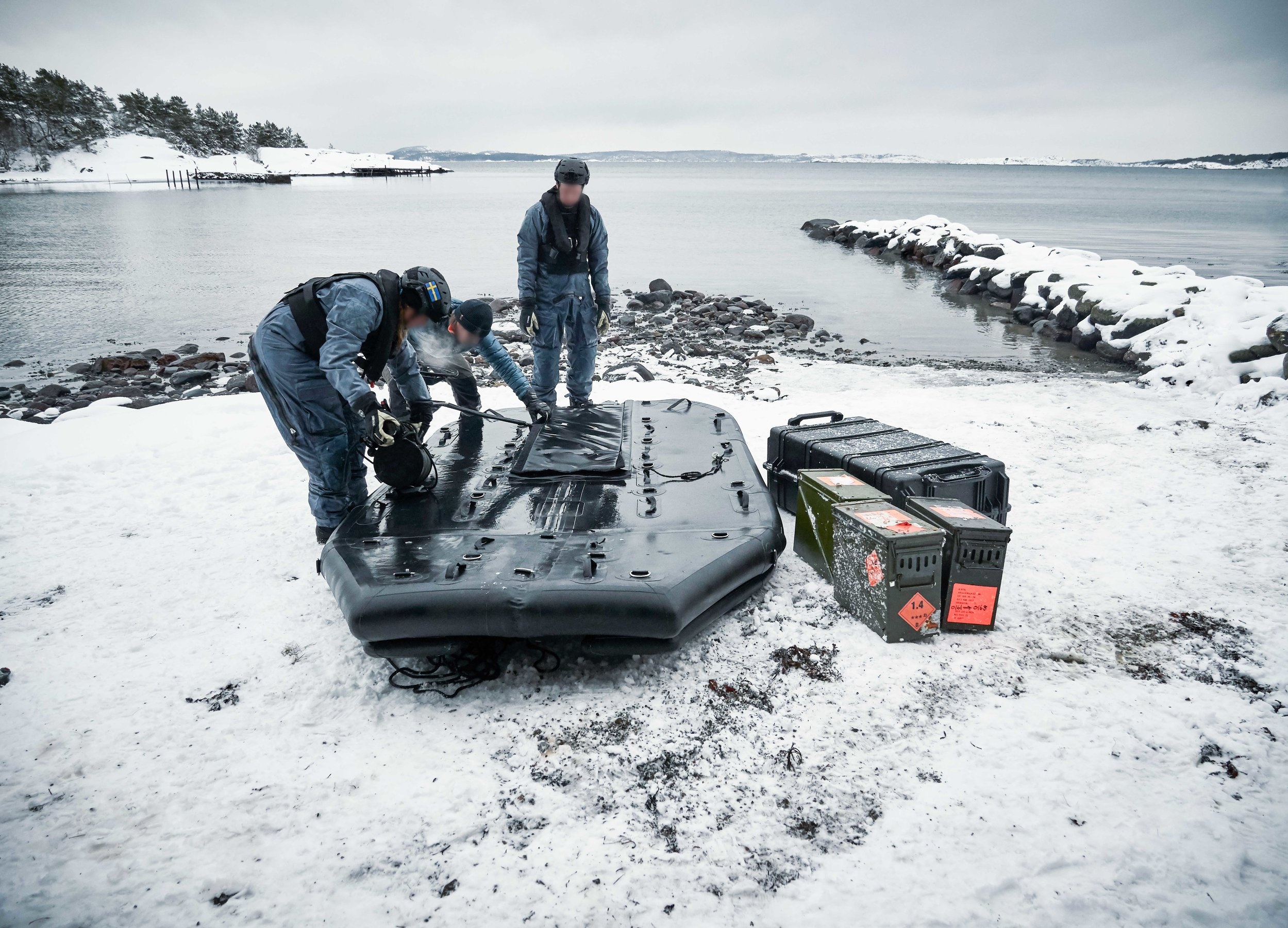

Kraka is small when deflated and packed, making it easy to carry or to handle onboard helicopters, boats etcetera. Special cargo cases are available.

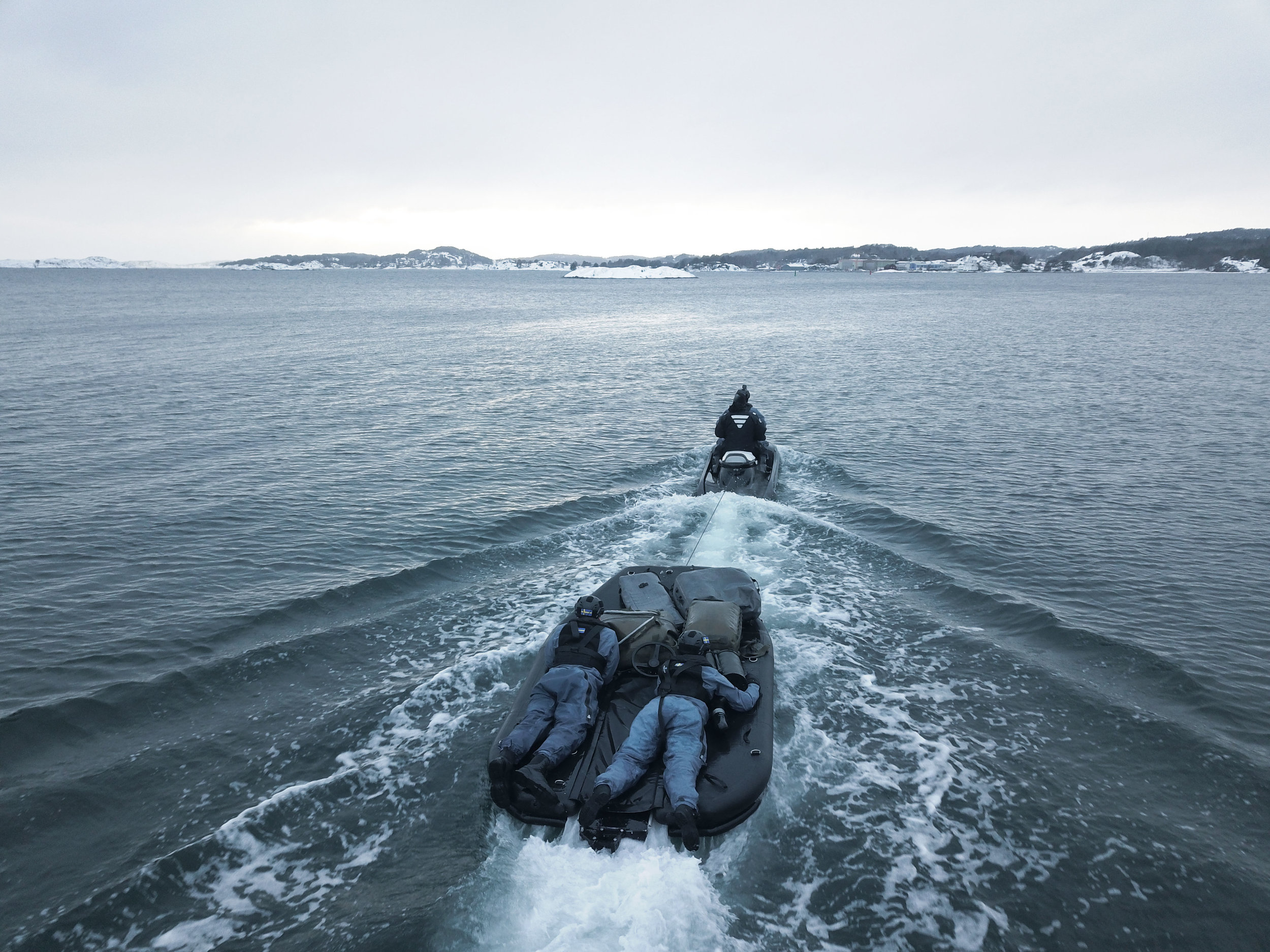

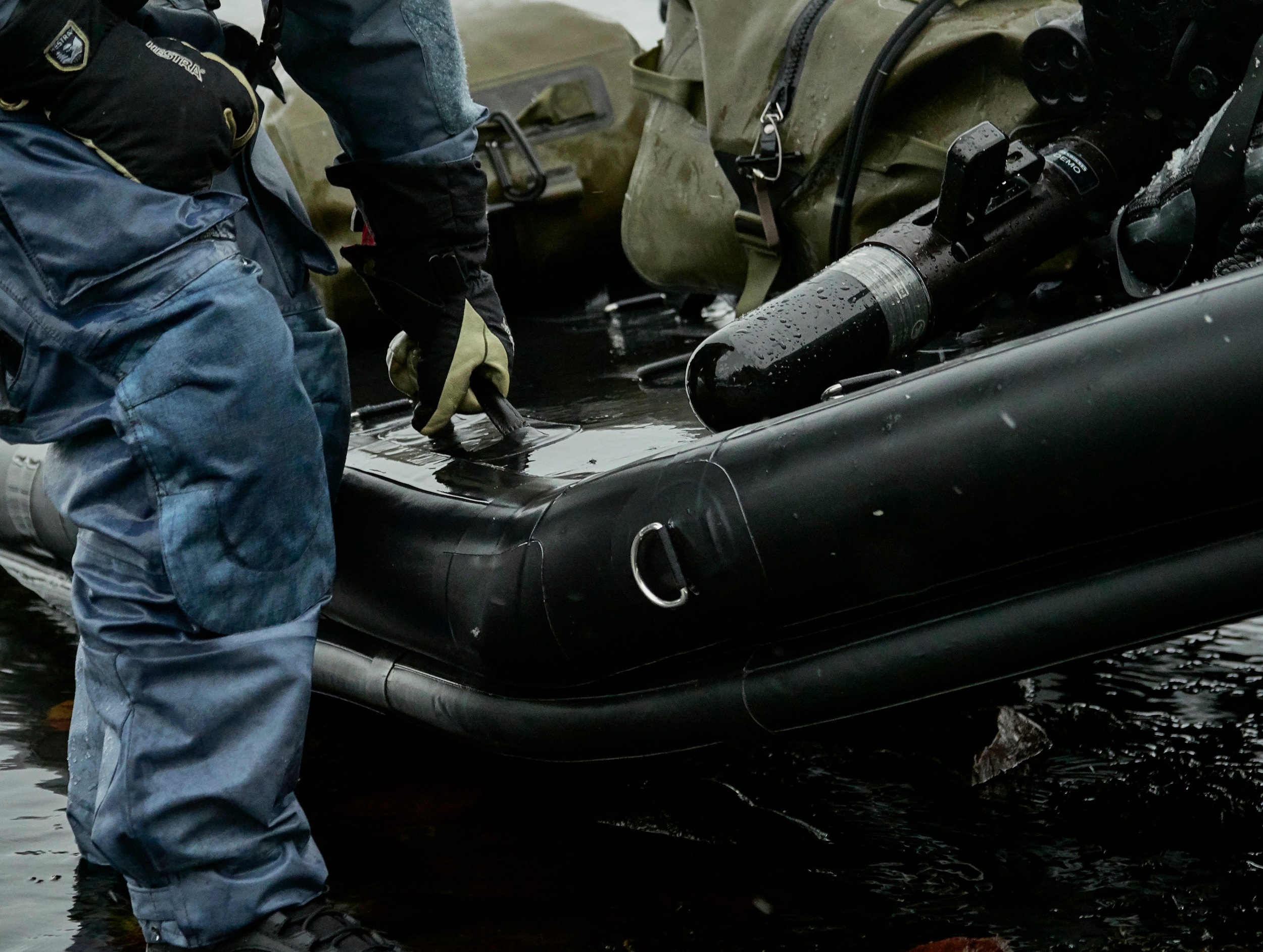

Can be towed: The board has double heavy duty D-rings capable of 1,000 kilos. A towing bridle joins the two attachment points together into one, which increases the towing payload and makes it easier and quicker to use.


SAFETY

Kraka has multiple safety sensors throughout the system, including fundamental features such as temperature monitoring and automatic system shutdown if the board is turned upside down.

The magnetically-triggered power key (dead man’s grip function) ensures Kraka can’t speed off on its own, without the operator.

OPTIONS

All boards are customized and comes in the following models:

4-man with engine pack

2-man with engine pack

Both boards are also available without engine pack for towing purposes to complement the area of use.

Kraka comes with optional extra gear such as transport case, carrying bags, autoinflation solution and more will be available later on.


KRAKA 250

TARGET SPEED: 20 knots
LOA: 2200 mm
WIDTH: 1220 mm
DRAFT: 250 mm
RUNTIME: 30-60 min
EXCHANGEABLE BATTERY: Yes
CHARGE TIME: 80/60 min
APP SERVICE PROGRAM: Optional
WATERPROOF DEPTH: 2 Meters
PAYLOAD: 250 kg

KRAKA 400

TARGET SPEED: 15 knots
LOA: 3000 mm
WIDTH: 1400 mm
DRAFT: 300 mm
RUNTIME: 30-60 min
EXCHANGEABLE BATTERY: Yes
CHARGE TIME: 80/60 min
APP SERVICE PROGRAM: Optional
WATERPROOF DEPTH: 2 Meters
PAYLOAD: 400 kg

KRAKA 600

TARGET SPEED: 12 knots
LOA: 3400 mm
WIDTH: 1600 mm
DRAFT: 300 mm
RUNTIME: 30-60 min
EXCHANGEABLE BATTERY: Yes
CHARGE TIME: 80/60 min
APP SERVICE PROGRAM: Optional
WATERPROOF DEPTH: 2 Meters
PAYLOAD: 600 kg


Click the image to download our brochure in PDF format

Click the image to download our brochure in PDF format

DOWNLOAD OUR FOLDER

Here you can download our informative folder in PDF-format.



SAR, MIL, R&D - SIX REASONS WHY

Kraka fundamentally changes the premises for operational work in critical situations at sea, where caution, safety, and agility are crucial for the mission’s success.

Made to work for you regardless if the use will be for Search and Rescue, Military/SF/Police or Research & Development missions - there is a model for all needs.


STEALTH MODE

KRAKA is silent thanks to her electrical engine. She will take you and your crew safely from A to B without letting anyone know you are there.


SHALLOW WATERS

KRAKA can help where other vessels fail due to shallow waters. Thanks to her jet engine she can go into areas where help is needed but hard to get.


TIME CRUCIAL

KRAKA is unpacked, inflated and the engine is attached within a few minutes. When time is of essence, KRAKA is your best friend.


INNOVATIVE

KRAKA is a Swedish innovation made by professionals for professionals. Now is your chance to be part of our journey in making transporting vessels for the future.


ENERGY SAVING

KRAKA will help save your energy to when you really need it. Imagine letting your crew rest easily on the jet board while going from boat to shore or over wide river crossings.

HEAVY LOAD

KRAKA carries the load for you - be it heavy cargo or water sensitive loads. When you need to transport sensors, comms and ammunition from boat to shore and in crossing rivers, you will benefit greatly from having KRAKA in hand.
